Special Cable operated throttle linkage and pedal assembly
Challenger Drag Pak Highlights

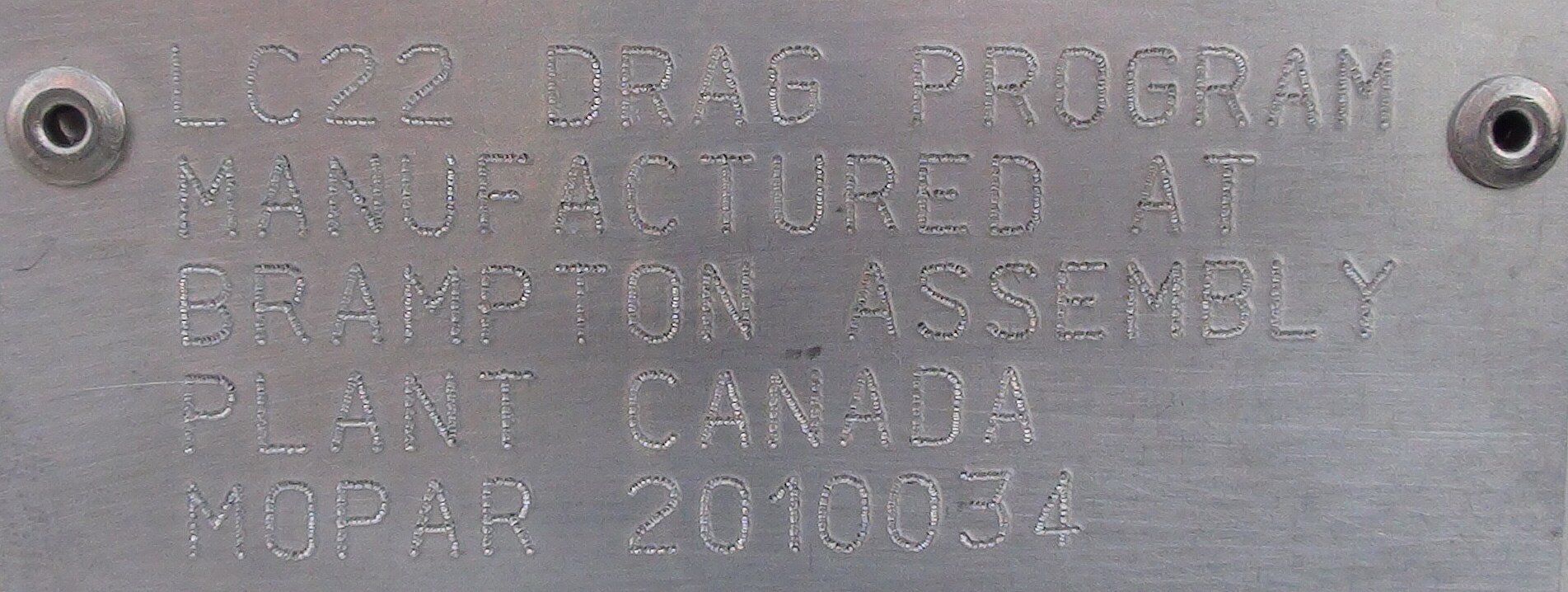

Identification Plate with Unique Serial Number Sequence
Primed and painted body
6.1L Hemi Engine:
Forged steel crankshaft and rods
Forged 12:1 cr pistons
Hydraulic roller cam
.584 valve lift w/ 1.6 ratio rocker arm
Special high ram EFI intake manifold w/ 4 bbl throttle body
4 Speed Automatic or 6 Speed Manual transmission Setup (Transmission not included)
Special BIW modified for drag racing (Approximately 1,000 lbs lighter then production)
No windshield wiper assembly
No HVAC system (includes block off plates)
No rear seats
No power steering system
No underbody heat shields
No fuel tank assembly
No exhaust system

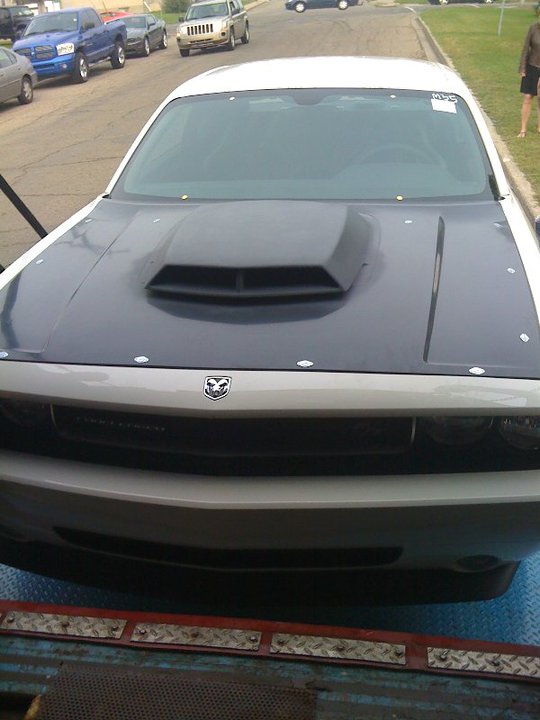

Composite liftoff hood with functional scoop
Modified tunnel for transmission clearance and one piece drive shaft
Raised floor above differential for solid axle conversion clearance
Polycarbonate door windows
Smart Glass door window system
Solid engine mounts
Engine repositioned, 19mm right offset and 75mm rearward
Seats to accommodate 6-point harness
Wheelbase Shortened 13mm. (rear axle moved forward)
Special modified K-Member with drop out cross-member
Lightweight drag race only front brake assembly
Manual rack and pinion steering
Front chin spoiler
Lightweight cooling module with electric fan
Lightweight Instrument Panel Assembly
Special cable operated deck lid release
Special cable operated throttle pedal and linkage

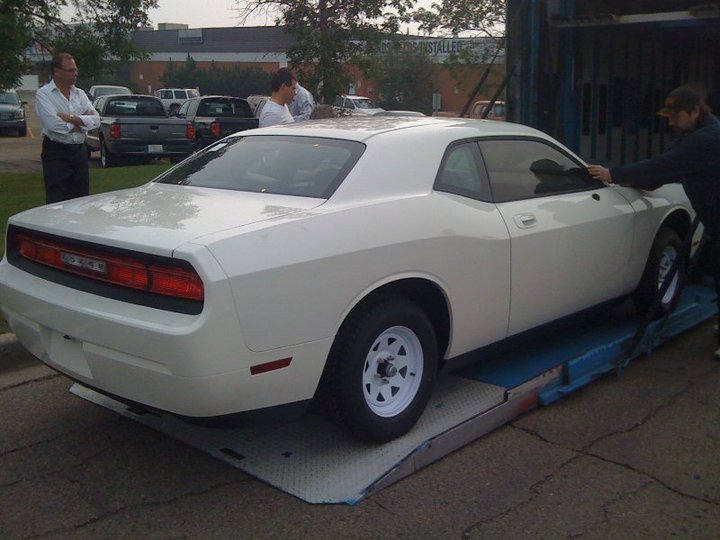

Ships with transport axle and wheels
The above highlights are for reference only. Mopar shall have the right to change the design of or specifications for any Part sold under this program, and shall have no obligation to provide notice of same to Applicant/Purchaser or make any similar change to any Part previously purchased by or delivered to Purchaser.
